Telescopic Conveyor Belt - Truck Loading

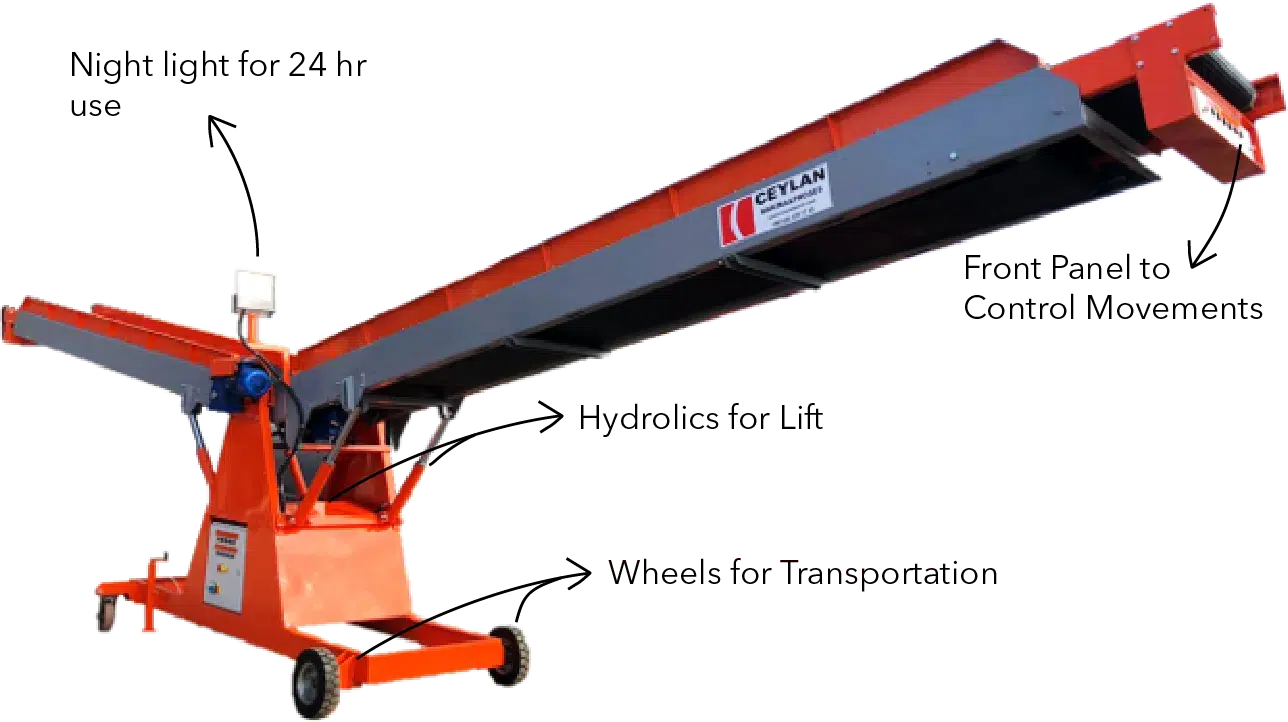

A double‑boom, mid‑base telescopic conveyor belt is a two-sided, mobile conveyor belt with a central chassis/base and two telescopic booms extending in opposite directions.
Each boom can extend/retract (telescopic reach) and raise/lower (lift & fall) via hydraulics. The telescoping motion is chain‑driven on both sides to keep the boom sections square and stable. The whole unit is supported on mobile casters so it can be repositioned.
Best Use Cases:
As telescopic belt conveyor manufacturers, here are a few use cases of our product:
- Two-sided loading/unloading (e.g., truck to container, two work zones)
- Flexible trailer/container reach where door positions and dock heights vary
- Sites with limited dock equipment where a mobile solution is preferred
- Loading of trucks after packing operations
Main Features of the Telescopic Conveyor Belt:
- Caster wheels with locking brakes for mobility
- 5 mm sturdy conveyor frame for stiffness and long service life
- Variable speed (VFD) for gentle start/stop
- 4 kW main drive unit for reliable operation

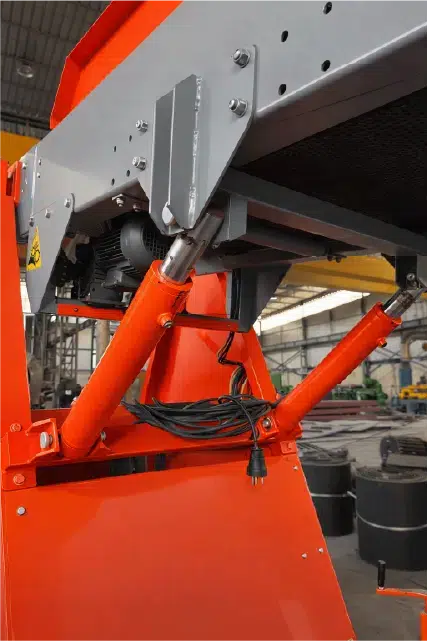

- Hydraulic cylinders for lift/lower (luffing) to position the belt inside the container
- Chain-driven boom travel with reliable drive control and smooth movement
Why Do Our Telescopic Conveyors Perform Longer?
Stronger Conveyor Frame
Our telescopic belt’s conveyor frame is made of a 5 mm-thick structural steel, which provides sufficient resilience for sudden drops of bags.
Chains to extend/retract Telescopic Booms

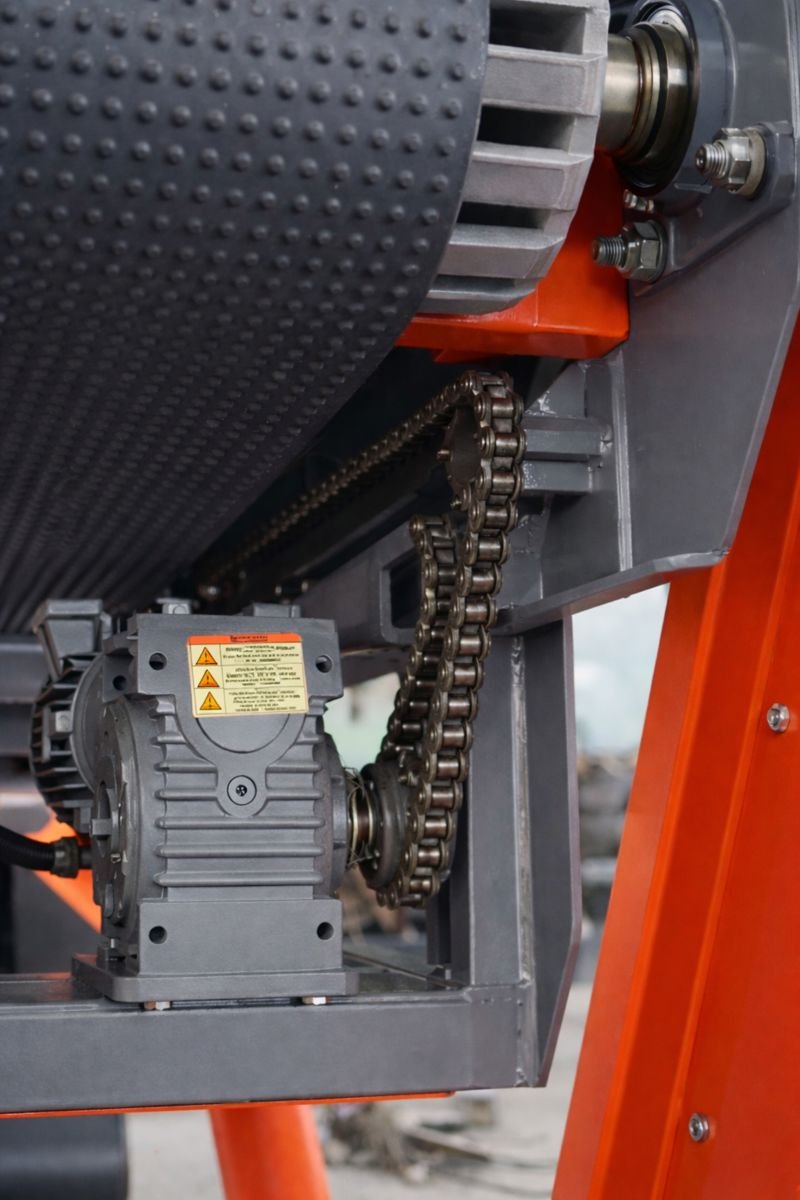

A chain-driven retract system gives mechanical pull, so the boom retracts smoothly even under varying load, dust, or bag contact—without relying on seal friction or oil pressure.
Two-sided Telescopic Boom Design
Our two sided design provides sufficient leverage to work both inside the container and inside the truck. Allows the operator to use the belt as the work distance increases.
Hydraulic Stability Under Load
Controlled lifting and a centralized hydraulic system provide smooth lift and drop.
Engineering of our Telescopic Conveyor Belt
As telescopic belt conveyor manufacturers, a lot of thought and consideration go into our engineering decisions when producing this machinery. Here are some of them.
Dimensions
The distance between the two endpoints of the telescopic conveyor belt is 23 meters.
The maximum height it can deliver product to is 4.5 meters from the ground.
Performance
Drive & Controls
3 main drives;
1 for driving belt,
2 for driving booms in/out

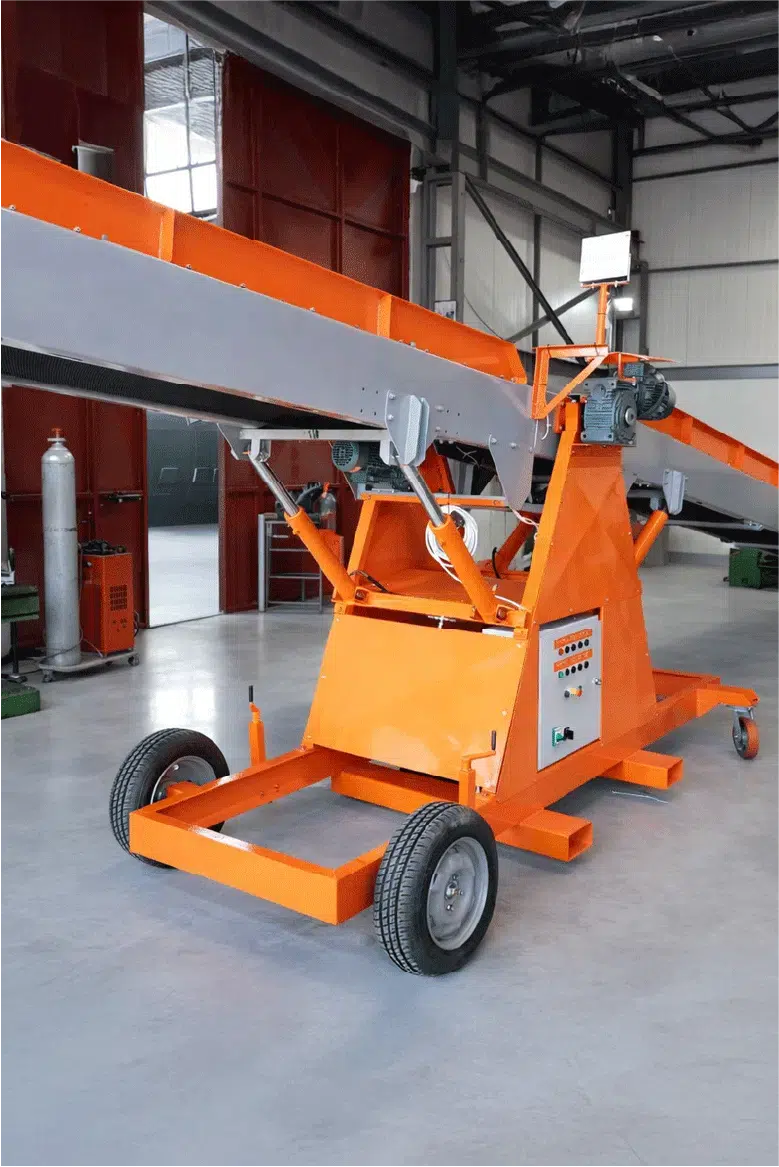

Photos from our Workshop
360° Product View of the Two-Sided Telescopic Conveyor Belt
Load Capacity
Up to 50 bags per minute (150 tons/hour)
Reach Length
23 m, left to right
Ground to 4.5 meters
Power (kW)
4 kW main drive
0.75 kW for boom drives
