NPK Fertilizer Granulation Systems: Best Practices

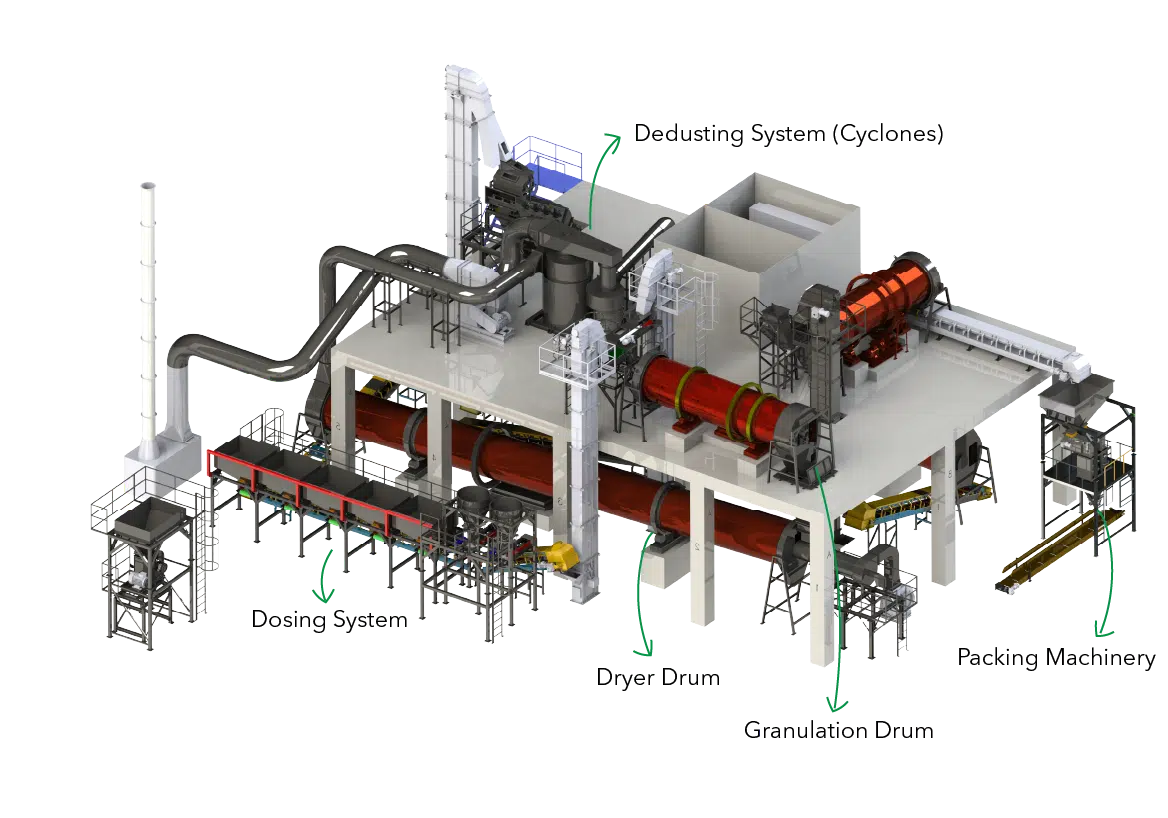

Dosing System → Granulation Drum → Drying Drum → Inclined Vibrating Screen→ Packaging Line
That’s the line’s heartbeat, pulsing through every tonne of product.
- ± 0.25 % dosing accuracy — six loss-in-weight hoppers retune themselves 20 × per second, so every nutrient hits the belt bang-on target.
- 97 % granules in the 2.5 – 4 mm band — within an NPK granulation system, the high-shear drum builds each nucleus layer-by-layer, locking in perfect size distribution.
- -25 % energy per tonne dried — a counter-current dryer recycles its own exhaust, squeezing kWh out of thin air.
- < 3 % fines & oversize after sieving — smart recycle gates in the NPK manufacturing line kick stragglers back until only spec-grade pellets march forward.
- 1,200 bags /hr at ± 0.2 % fill tolerance — servo-scale packers weigh, seal, and palletise so fast the forklift can barely keep up.
Put those arrows together, and the story writes itself: raw material in, strong granules out—all day, every day.
Five Steps to Efficient NPK Fertilizer Granulation.
Step1: Dosing
The Formula Enters into the System
In modern NPK manufacturing, six load‑cell hoppers discharge onto individual weigh‑belts.
When a new N‑P‑K formula is entered, the PLC adjusts belt speeds and activates diverter gates in sequence to deliver each component at the required mass flow.
- 20 weight checks / second keep the rhythm; if a feeder drifts by so much as one gram, the PLC retunes its belt immediately.
- Fugitive dust? Instantly pulled back by vacuum spouts, so nothing escapes the formula in the controlled NPK granulation system.
Take‑away: The granulator in the NPK production line receives a contamination‑free, perfectly homogenised feed—grade certificates stay bullet‑proof.
STEP 2 : Granulation
Powder → Granule Engineering
Inside the core of the NPK Granulation Process—the rotary drum granulator—lift‑flights keep the premix cascading while atomised water or steam acts as the binder.
Controlled nucleation and layering build each particle to the 3–5 mm target size.
Drum speed, residence time, and binder flow are closed‑loop controlled; a pipe‑reactor injects molten ammonium‑phosphate binder and heat, stabilising moisture and holding size distribution without fines ⇄ overswings.
- VFD‑driven shell allows on‑the‑fly speed adjustments.
- Bed‑temperature sensors feed the PLC to regulate the steam/binder rate.
- Typical throughput: 30 t h⁻¹ on balanced NPK grades within a fully integrated NPK granulation system.
Take‑away: Consistent, impact‑resistant granules with minimal recycle load.
Also check IPCO’s granulation drum.
STEP 3 : Drying
< 1 % Moisture Guarantee
Granules enter a direct‑fired rotary dryer—the drying backbone of any NPK manufacturing line— where lift‑flights form a continuous curtain through 110 – 125 °C process air.
Designed residence time is ≈ 20 min, ample for heat penetration and gradual moisture release. Inline NIR moisture sensors verify that the final product exists at <1 % moisture.
- Discharge air temperature sensor feeds a PID loop that modulates burner fuel, holding outlet at the set‑point and preventing overdrying or nitrogen loss.
- Lift‑flight pattern maximises surface area without degrading granule integrity during NPK manufacturing.
- Exhaust passes cyclones + baghouse; recovered fines recycle as seed.
Take‑away: Uniform <1 % moisture, 20‑min gentle residence—stable, non‑caking product ready for cooling.
STEP 4 : Milling
Oversize to On‑Spec Fines
Within the NPK granulation loop of the NPK granulator, oversize granules (>4 mm) are routed to an in‑line chain or cage mill.
A variable‑frequency drive keeps rotor speed between 600–900 rpm, delivering just enough impact energy to split agglomerates along growth planes without creating excess dust.
Replaceable AR liners and chromium‑hardened chains push service life beyond 4 000 h.
A 4–6 mm screen plate calibrates the discharge, resulting in 0.5–2 mm seed fines being pneumatically returned to the drum feed within the NPK granulation system.
- Torque sensor + amp trend alert maintenance of chain wear before failures occur.
- Dust hood and bag filter hold mill exhaust <5 mg Nm⁻³.
- Rated for ≥25 % of plant throughput, so milling never limits production.
Take‑away: Oversize becomes uniform seed fines in one pass—>95 % on‑spec yield and closed‑loop recycling with zero discard.
