Out of all the process variables governing NPK granulation performance, the recycle ratio is probably the most influential – and the least well understood by those putting in place a brand new plant. The recycle ratio isn’t a fixed trait – it’s a dynamic quantity that gives you an idea of the health of the entire granulation loop. When recycling is kept within the parameters it was designed for, the plant runs smoothly, product quality is consistent, and downstream equipment can run close to its normal capacity. On the other hand, when the recycle ratio starts to creep up and isn’t corrected, a whole domino effect of operational problems kicks in – and it’s hard to stop that from happening without either reducing plant output or interfering with the process at multiple points at the same time.
We will be breaking down what the recycle ratio is, what it needs to be kept within to achieve good NPK granulation, what causes it to go awry, and what strategies and practices are needed to get it back under control.
What is the Recycle Ratio

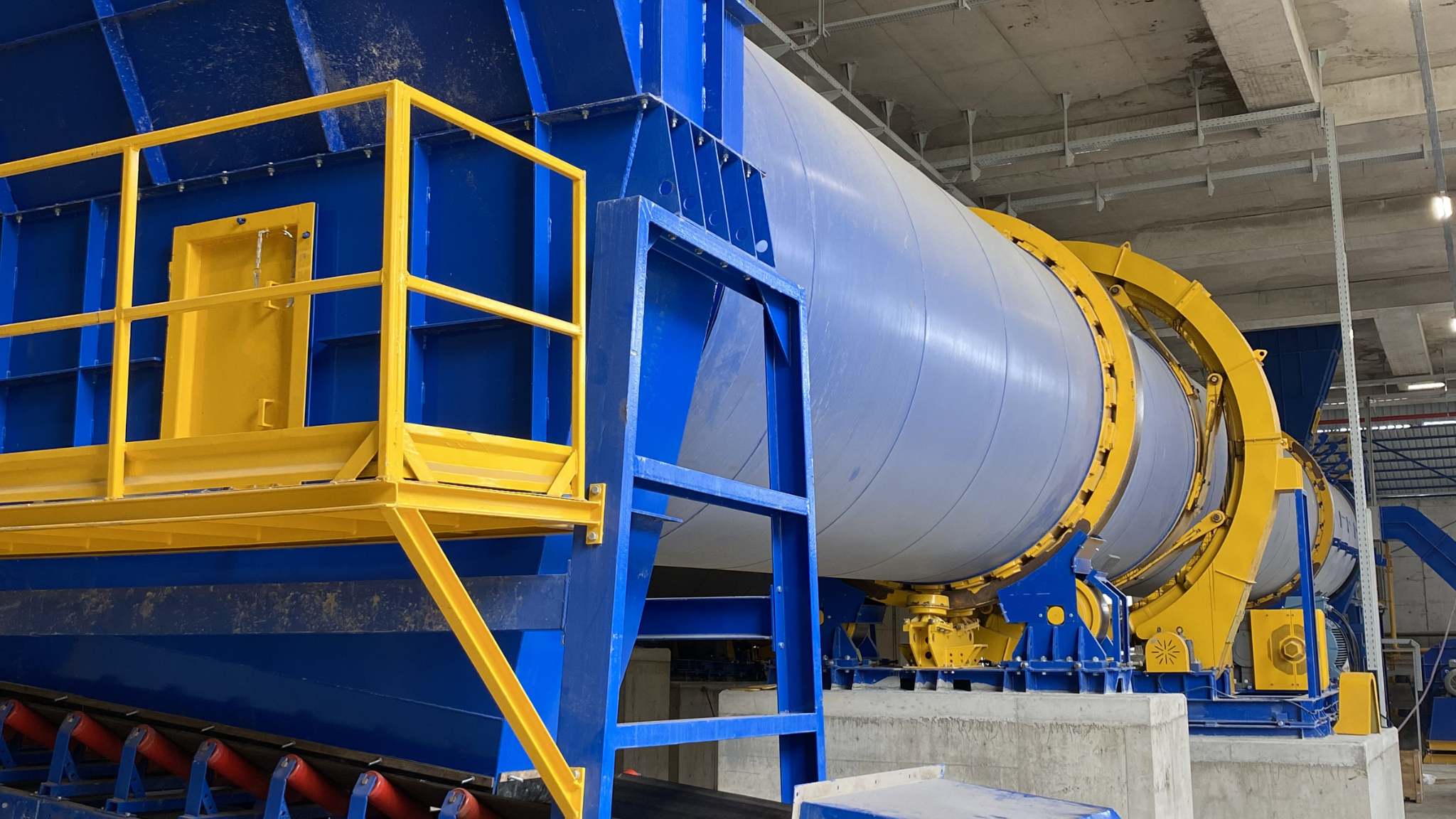

The recycle ratio in an NPK granulation system is the mass flow of recycled off-size material returned to the granulator divided by the mass flow of on-size product leaving the loop. In a plant churning out 20 t/h of finished NPK granules, a recycle ratio of 3:1 means 60 t/h of recycled material is being fed back into the granulator on top of the fresh feed – so the granulator as a whole is handling roughly 80 t/h of total circulating load (60 t/h recycle plus 20 t/h fresh feed equivalent). This recycled material has already been granulated, dried, and screened – but it’s either too fine or too coarse to meet the size cut.
The recycling stream consists of two types of material. The fines fraction – granules that are smaller than the lower screen cutpoint, usually smaller than 2mm for standard NPK types – gets passed through the bottom screen deck and straight back into the granulator feed, where it acts as a nucleus for fresh material to build on to. The oversize fraction – granules that are bigger than the upper screen cutpoint, usually bigger than 4-5mm – gets chucked into a hammer or chain mill to break it up to the right size, then gets chucked back into the granulator.
In a well-run system, both fractions have a useful role to play. Fines provide the starting point for new material to build on top of, and crushing oversize helps provide seed-sized particles to initiate granule growth in a controlled way. The trouble comes when the two factions get out of balance – when the recycle load gets too big for the granulator to handle, and product consistency starts to suffer.
The Design Operating Window
In a stable, well-designed NPK granulation loop, the recycle ratio is often designed around roughly 3:1 and 4:1 for many NPK drum granulation duties, though the right window is grade and formula specific. At the lower end of that range, the granulator is getting a pretty lean seed load relative to the fresh feed, and granule formation is mainly driven by the fresh raw material mix. At the upper end, the process is heavily seeded, which can help with size control but really puts the granulator under pressure.
Ratios below 2:1 are pretty unusual for standard NPK drum granulation. They may mean that the screening stage is classifying efficiently, that the plant is intentionally bleeding or controlling seed, or that binder/liquid addition is too low for the granules to develop properly – so a low recycle number should be checked against size distribution and hardness rather than treated as an improvement by itself.
On the other hand, ratios above the plant’s design basis generally signal the early stages of system instability. At this point, the granulator is carrying more material than it’s designed to handle, the fill factor starts to rise, and granule quality starts to suffer. This suffering results in even more substandard material getting sent back through the system, which in turn makes the problem even worse. This is a positive feedback loop that can get self-sustaining, and you can imagine why operators really need to keep on top of this.
What Causes the Recycle Ratio to Escalate
Wet Feed or Too Much Binder
The most common reason the recycle ratio goes out of control is when the feed material to the granulator is too moist. If the raw material varies or you’ve got a problem with your binder control system, it can cause the granulation process to start agglomerating instead of forming granules in a nice, controlled way. The result is a lot of oversized agglomerates that the hammer mill isn’t designed to handle, and it gets sent back into the system in a much greater volume than it’s configured for.
Steam granulation systems have the same problem if the steam valve is malfunctioning or has been tuned incorrectly – you end up with the bed surface getting too wet, which causes big granules to form instead of smaller ones, and the hammer mill struggles to keep up.
Over-Seeding
Over-seeding tends to occur whenever too many fine seed particles get fed back into the granulator than can be mixed into growing granules within the available residence time. This is normally a problem that crops up after the screening stage produces a higher-than-usual amount of fines. This can be due to a change in the grind of the feed, a worn-out or blinded screen mesh, not enough binder in the mix, or a combination of all those factors and more. In this situation, the whole of that excess fine material is getting fed back into the drum without any sort of intermediate controls kicking in.
As a result of over-seeding, the granulator is producing a product that is too heavy on the fine end. You get too many nuclei competing for the available binder and fresh material, which means that individual granules just aren’t growing very quickly and a lot of them are failing to reach the desired size range before being discharged. So when you get to the subsequent screening pass, you get yet another elevated amount of fine material, making the problem just perpetuate itself.
Poor Screening Efficiency
The screen is basically the classification engine of the granulation loop. If it’s not running at proper efficiency for some reason – perhaps due to a blinded mesh, a screen that has worn out or is the wrong size, incorrect vibration frequency, or uneven distribution of material across the deck – it’ll end up misclassifying product. This results in granules that are within spec being flagged as fines or oversize and sent to the wrong pile, while granules that are not in spec will pass through undetected as if they were good product.
The result is a bit of an artificially boosted recycle load and, at the same time, a product quality that ends up being worse than it should be.
Screen blinding is a particularly nasty problem we see with hygroscopic NPK formulas. Urea-based and other hygroscopic nitrogen-containing NPK formulations can pick up moisture and cause fines or soft granules to blind the screen mesh. This causes the fine material to stick to the mesh and progressively reduces the effective open area of the screen. Once it starts to occur, you find that the screen will still appear to be operating correctly from a vibration and throughput point of view – even though the classification efficiency is actually much lower.
Dosing Inaccuracy
The accuracy of the formula at the dosing stage feeds directly into how the granulation behaves. If one component, probably something high in nitrogen or potassium that is hygroscopic in a different way from the baseline or has a different bulk density, is being overdosed relative to the formulation, then the aggregate feed coming to the granulator is going to behave differently than we originally figured out in our process parameters. In these circumstances, binder addition rates we have calibrated for the correct formula end up being either too little or too much, leading to a significant shift in how the granulation mechanism works, resulting in more fines or oversized material.
Control Strategy for Recycle Ratio Stabilisation
Closed-Loop Binder Control
From a recycle ratio point of view, binder addition rate is one of the most critical control loops in NPK granulation systems. In steam granulation systems, this means we need a closed-loop steam flow controller with a setpoint based on the total material that is going into the drum, not just the fresh feed rate. As the recycle rate goes up and total throughput increases, the binder addition rate has to increase in lockstep to keep the correct moisture level in the bed.
A common mistake is to base the binder control loop on the fresh feed rate alone. Under normal steady-state conditions, that works out okay. During recycle excursions – exactly when we need the binder control to be working at its best – it ends up giving us a systematic underdosing of binder relative to the actual bed mass. This knocks the efficiency of granule formation and just makes it harder for the recycling condition to get itself sorted out.
Bed Temperature Monitoring
Granulator bed temperature is a pretty reliable indicator of just how well the moisture levels are turning out in the granulation bed. As the moisture increases, the latent heat of evaporation starts to absorb energy from the bed and the temperature drops. Conversely, when the bed starts to dry out, we see the temperature rise. Installing a bed temperature sensor – a thermocouple or even an infrared probe that gives us a reading of the active bed zone – gives us a continuous signal we can use to modulate binder addition so that we spot trouble before the granulation mechanism starts to veer off towards agglomeration.
This is a pretty good example of feedforward control that NPK granulation plants don’t use nearly enough. Rather than waiting for oversized product to start getting made before reducing binder input, the control system can spot a drop in bed temperature and begin modulating binder levels in real-time so the granulation mechanism never gets a chance to shift over towards agglomeration.
Recycle Rate Monitoring and Feed Dividers
In cases where the recycle stream is being run over a dedicated conveyor before being fed back into the granulator, we can install a belt weigher on that conveyor. This gives us a direct, continuous measure of how much recycled material is flowing in – and we can then divide that by the rate at which product is coming out of the screen to get the real-time recycle ratio. If that ratio starts to creep above the plant’s design limit , then the control system will flag that and prompt the operator to reduce binder input, check the screen, or temporarily cut back on the fresh material to let the system sort itself out.
In some very well-engineered plants, they also include a recycle diverter gate on the conveyor downstream of the hammer mill that lets them divert a portion of the crushed oversized material into the waste stream rather than having it fed back into the drum during a recycle excursion. This is obviously a stopgap measure that trades some material loss for loop stability, but it is a useful safety valve in situations where you get a temporary spike in recycle that you can’t avoid, like during a grade change or the initial start-up phase. The periods of highest recycle ratio woes to watch out for in an NPK granulation plant are not steady-state operation – they’re grade transitions and starting from the cold, dead of night. During a grade change, the formula going into the granulator changes, which usually messes with the hygroscopicity and binder demand of the bed. When operators try to apply the same old binder settings for the outgoing grade to the new formula – boom! You’re looking at a period of elevated recycling before the process finally finds its new groove.
Having established start-up and grade-change recipes that are stored in the plant’s PLC, which defines the binder addition rate, drum speed, dryer temperature setpoint, and screening parameters for each grade at each stage of the transition – that’s one of the most reliable ways to manage these vulnerable periods. Plants that rely on operator experience and fiddling with things manually during grade changes, on the other hand, tend to show higher recycle ratio variability and longer stabilisation times than those with structured, recipe-driven transitions.
The Downstream Consequences of Unchecked Recycling
When recycle rates get out of hand – it’s not just the granulator that suffers.
The rotary dryer is sized for a specific mass and volumetric throughput. When recycling gets high, and you’re suddenly moving more material through the drum than it was designed to handle, the dryer is going to be overloaded. Residence time in the dryer goes down, and moisture can rise above the product target; for some urea-based NPK grades, the target is below 1%, and the drying capacity of the line becomes the bottleneck on production, not the granulator.
Hammer mill is another issue – it’s sized to handle a normal oversize fraction, but when recycling gets out of hand, it can’t cope with the extra volume at its design reduction ratio. If the mill can’t keep up, oversize just builds up ahead of it, and before long, manual intervention is going to be needed to step in to clear the blockage.
The screen, which is probably already working its magic under a heavy load from all those excess fines, now has an even bigger job on its hands with the increased total feed rate, which reduces its effective residence time and classification efficiency, making it a whole lot harder to get a clean separation.
The bottom line is – an out-of-control recycle ratio doesn’t just cause a localized problem, it causes a whole line of problems in every piece of equipment in the granulation loop. Controlling it’s not just a process optimisation measure – it’s a fundamental requirement for the plant to run smoothly.
