Telescopic Belt - Container & Truck Loading
Two-sided belt, reversible direction, height adjustable—built for fast bag handling with fewer jams.
- Wheels for transportation
- 5 mm sturdy body
- Telescopic boom on each side
- Panels at each end to control the booms easily
Why Our Belts Last Longer?

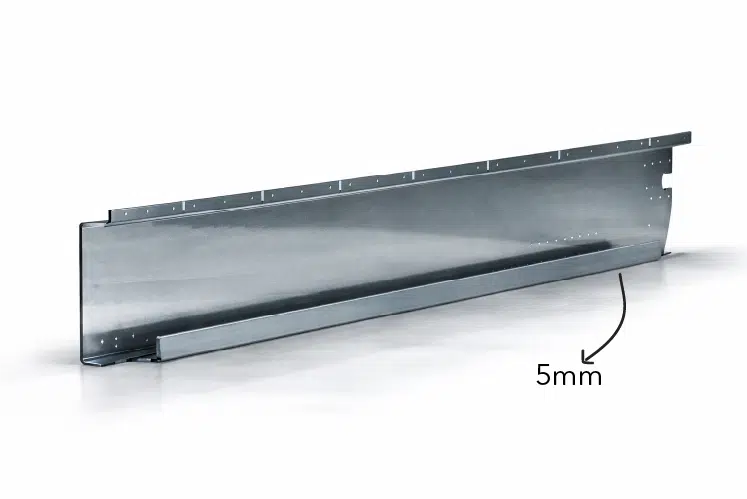

Stronger main frame
Our telescopic belt’s frame is made of a 5 mm-thick frame, which provides sufficient resilience for workers’ sudden drops of bags.

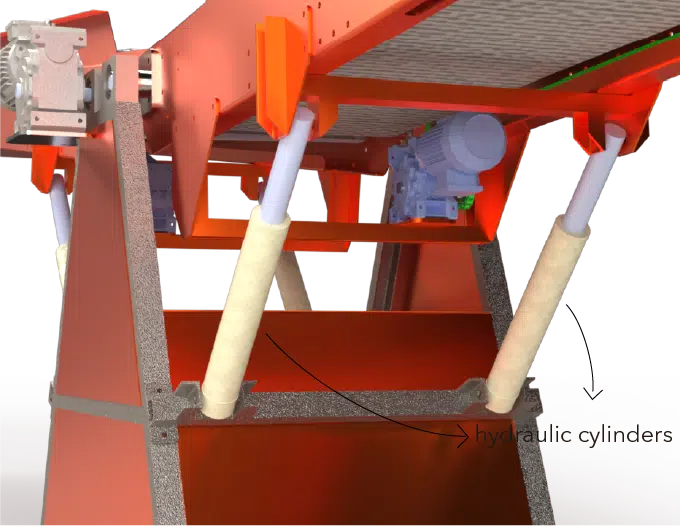

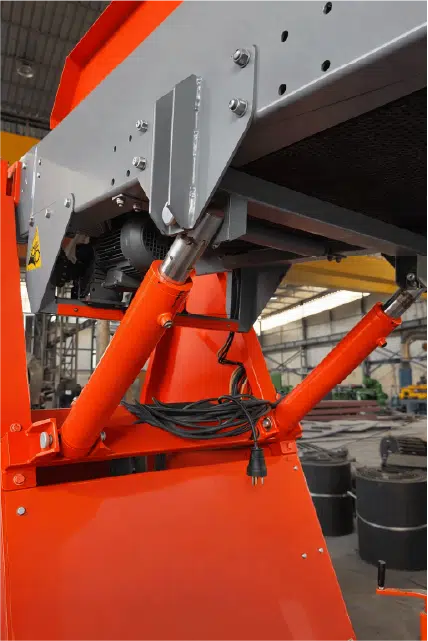

Hydraulic stability under load
Controlled lifting and a centralized hydraulic system provide smooth lift and drop.

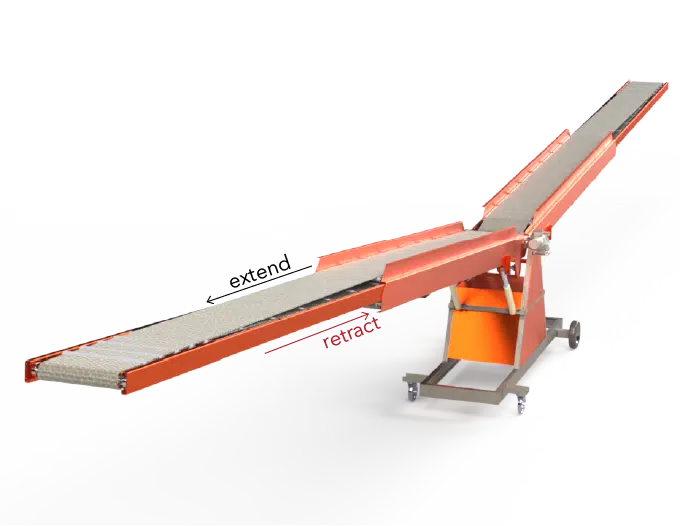

Two-sided telescopic boom design
This provides sufficient leverage to work both inside the container and inside the truck. Allows the operator to use the belt as the work distance increases.

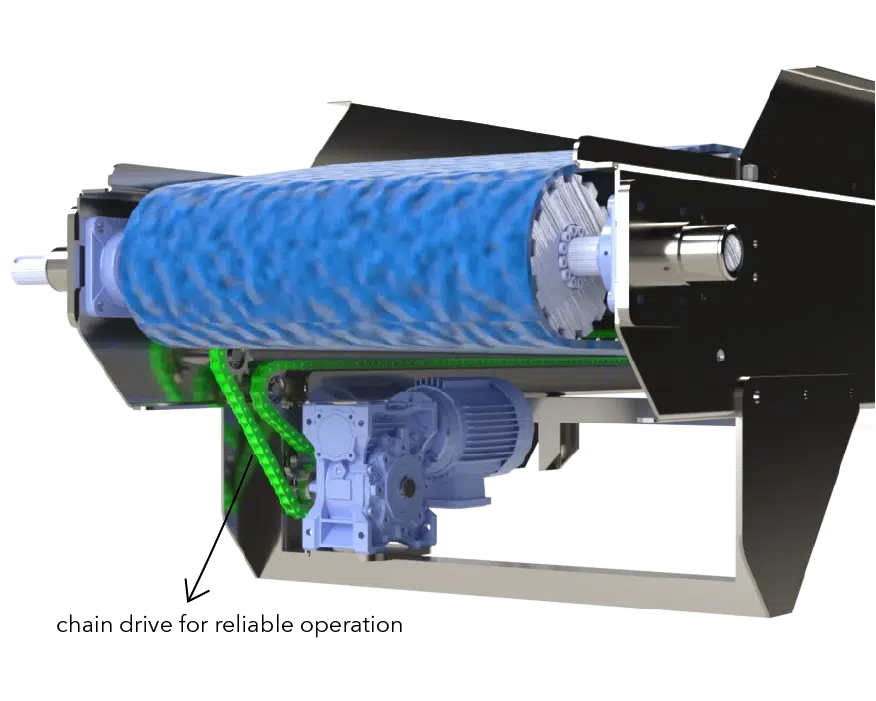

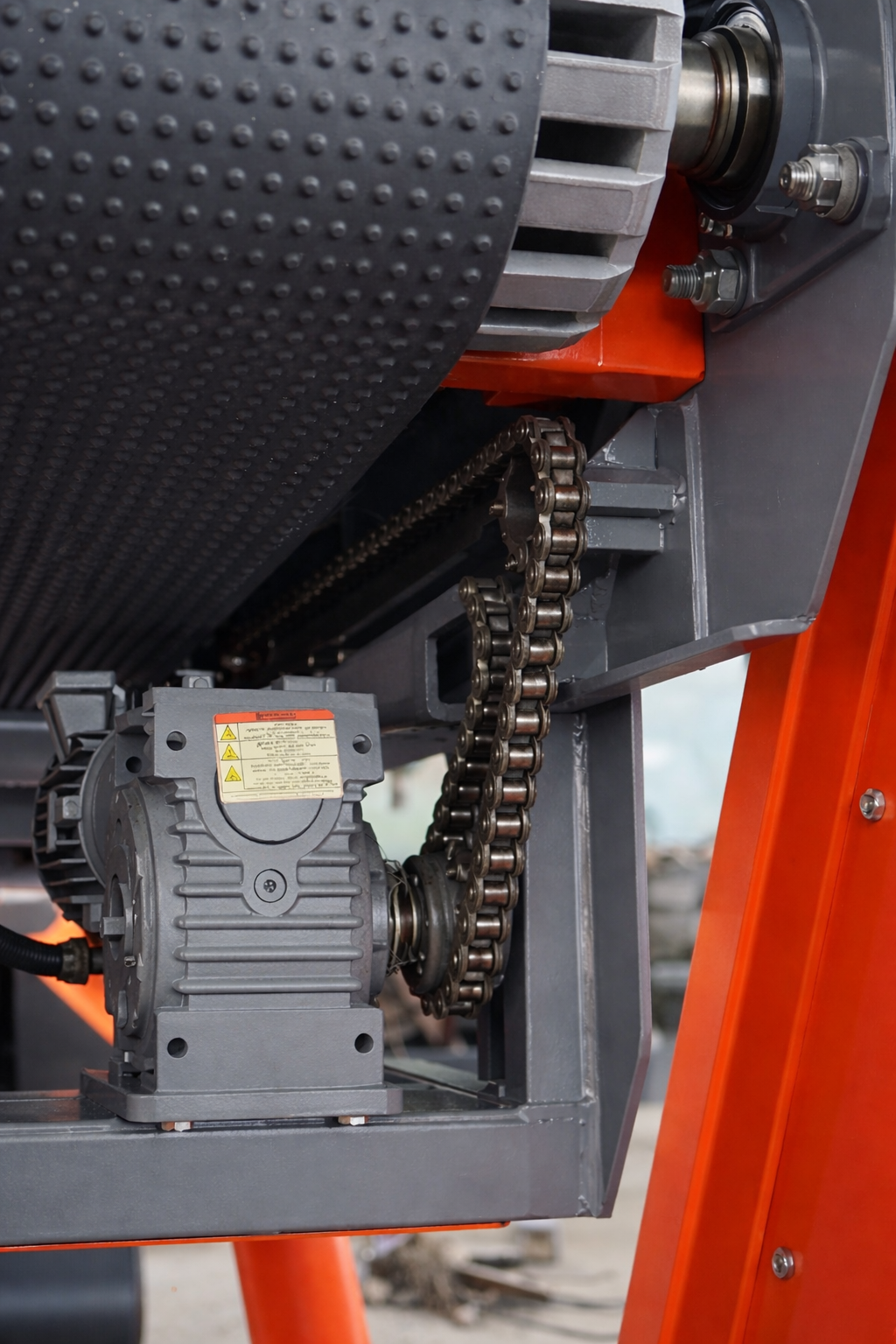

Chain drive to extend/retract booms
A chain-driven retract system gives mechanical pull, so the boom retracts smoothly even under varying load, dust, or bag contact—without relying on seal friction or oil pressure.
Engineering of our Belts
Performance
Belt speed 1.1 meters/second which is 50 boxes or sacs (50kg) per minute.
Dimensions
The distance between two end points of the telescopic belt is 23 meters.
The maximum height it ran deliver product is 4.5 meters from the ground.
Drive & Controls
3 main drives;
1 for driving belt,
2 for driving booms in/out
Photos from our Workshop
360° Product View
Capacity
up to 50 bags per minute (150 tons/hour)
Reach
23 m, left to right
Height Range
ground to 4.5 meters
